CHIANTI IDL Comparison: Ionization Fraction

Compare the ionization fraction calculation to that in the CHIANTI IDL routines for a few select ions.

import matplotlib.pyplot as plt
import numpy as np

from astropy.visualization import quantity_support

import fiasco

from fiasco.tests.idl.helpers import read_idl_test_output
from fiasco.util.setup_db import LATEST_VERSION

quantity_support()

<astropy.visualization.units.quantity_support.<locals>.MplQuantityConverter object at 0x7ce9d856d070>

Define a function for comparing and plotting the outputs from fiasco and IDL. Note that we have precomputed the IDL outputs.

def plot_idl_comparison(x, y_idl, y_python, fig, n_rows, i_row, quantity_name, thresh=1e-6):
    # Highlight region where value of goft is within some value of the peak
    idx = np.where(y_idl>=y_idl.max()*thresh)
    x_thresh_min, x_thresh_max = x[idx[0][[0,-1]]]
    # Direct comparison
    ax1 = fig.add_subplot(n_rows, 3, i_row+1)
    ax1.plot(x, y_python, label='fiasco')
    ax1.plot(x, y_idl, color='k', marker='o', ls='--', markevery=2, label='IDL')
    ax1.axvspan(x[0], x_thresh_min, color='r', alpha=0.25)
    ax1.axvspan(x_thresh_max, x[-1], color='r', alpha=0.25)
    ax1.set_xscale('log')
    ax1.set_yscale('log')
    if i_row == 0:
        ax1.set_title('Ionization Fraction')
    ax1.set_xlim(x[[0,-1]])
    ax1.set_ylim(y_python.max()*np.array([thresh,2]))
    ax1.set_ylabel(quantity_name)
    # Ratio
    ax2 = fig.add_subplot(n_rows, 3, i_row+2, sharex=ax1)
    ax2.plot(x, (y_python/y_idl).decompose())
    ax2.axvspan(x[0], x_thresh_min, color='r', alpha=0.25)
    ax2.axvspan(x_thresh_max, x[-1], color='r', alpha=0.25)
    ax2.axhline(y=1, color='k', ls=':')
    if i_row == 0:
        ax2.set_title('fiasco / IDL')
    diff_limit = .001
    ax2.set_ylim(1-diff_limit, 1+diff_limit)
    # Normalized difference
    ax3 = fig.add_subplot(n_rows, 3, i_row+3, sharex=ax1)
    ax3.plot(x,  ((y_python - y_idl)/y_idl).decompose())
    ax3.axvspan(x[0], x_thresh_min, color='r', alpha=0.25)
    ax3.axvspan(x_thresh_max, x[-1], color='r', alpha=0.25)
    ax3.axhline(y=0, color='k', ls=':')
    if i_row == 0:
        ax3.set_title('(fiasco - IDL)/IDL')
    ax3.set_ylim(-diff_limit, diff_limit)
    return ax1, ax2, ax3

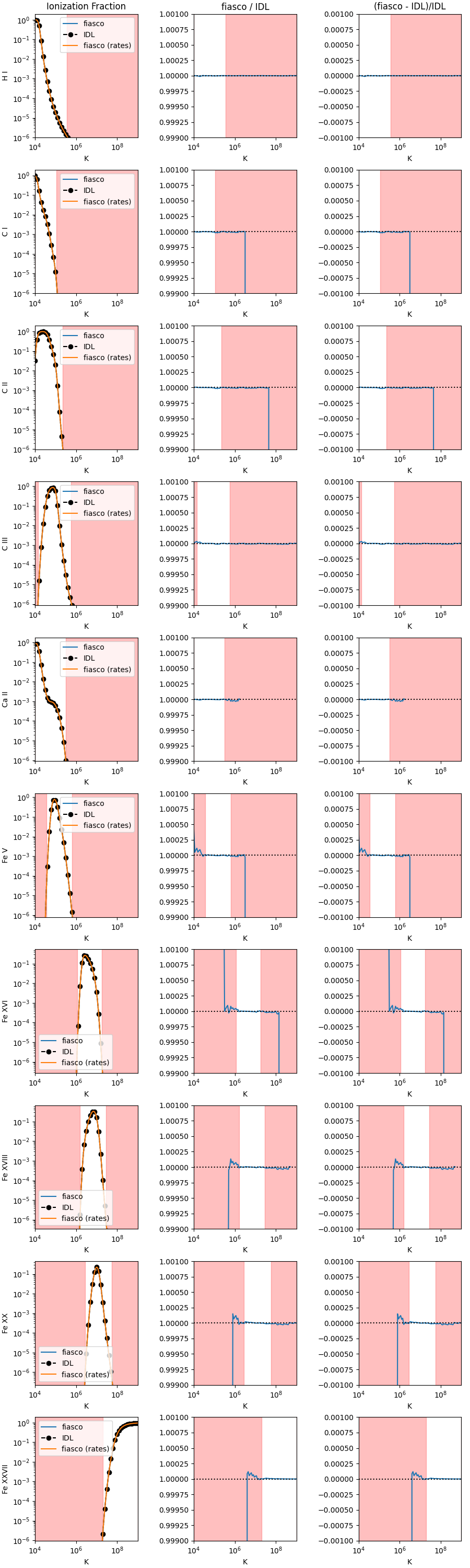

Next, plot the comparison between the ionization fraction results for a selected number of ions. In the case of fiasco, we will also compute the ionization fraction in addition to reading the tabulated values. The regions highlighted in red denote places where the ionization fraction is less than \(10^{-6}\) times the peak of the ionization fraction. In these regions, the comparison is between the two results is not as critical as differences due to the interpolation schemes may show large deviations between the two approaches. However, the ionization fraction in these regions does not meaningfully contribute to any other derived quantities.

ionization_files = [
    'ioneq_1_1',
    'ioneq_6_1',
    'ioneq_6_2',
    'ioneq_6_3',
    'ioneq_20_2',
    'ioneq_26_5',
    'ioneq_26_16',
    'ioneq_26_18',
    'ioneq_26_20',
    'ioneq_26_27',
]
fig = plt.figure(figsize=(9,3*len(ionization_files)), layout='constrained')
for i, name in enumerate(ionization_files):
    idl_result = read_idl_test_output(name, LATEST_VERSION)
    ion = fiasco.Ion((idl_result['Z'], idl_result['iz']),
                     idl_result['temperature'],
                     ionization_fraction=idl_result['ionization_fraction'])
    element = fiasco.Element(ion.atomic_symbol, ion.temperature)
    ionization_fraction = element.equilibrium_ionization
    print(f"CHIANTI database {idl_result['database_version']}")
    print(f"CHIANTI IDL {idl_result['chianti_idl_version']}")
    print(f'IDL code to produce ionization_fraction result for {ion.ion_name_roman}:')
    print(idl_result['idl_script'])
    axes = plot_idl_comparison(ion.temperature, idl_result['ioneq'], ion.ionization_fraction,
                               fig, len(ionization_files), 3*i, f'{ion.ion_name_roman}')
    axes[0].plot(element.temperature, ionization_fraction[:, ion.charge_state],
                 label='fiasco (rates)', color='C1', ls='-')
    axes[0].legend()
plt.show()
